atu galway city campuses
Public platform Lift

Location: Galway, Ireland
Status: Completed
Lift Type: Commercial Lift
Image and Video Credit: Modulacc

We installed two public platform lifts at ATU Galway’s Dublin Road and Wellpark Road campuses, providing accessible movement between floors within the two-storey modular buildings constructed by Modulacc.

Designed to meet Disability Access Certificate (DAC) requirements, and fully DDA and Part M compliant, the lifts were selected to suit the modular build approach. This allowed each installation to be coordinated with the wider construction programme and integrated smoothly into the finished buildings.

Technical shaft plan drawing of a dumbwaiter elevator with front and side views, dimensions, and labeled safety bar and travel height measurements.
the icons from a lift control panel
2
STOPS
a vertical line with arrows at either end
3590 MM
TRAVEL
an icon of a speedometer
0.15 M/S
SPEED
an icon of a weight
500 KG
RATED LOAD

wellpark Road Campus

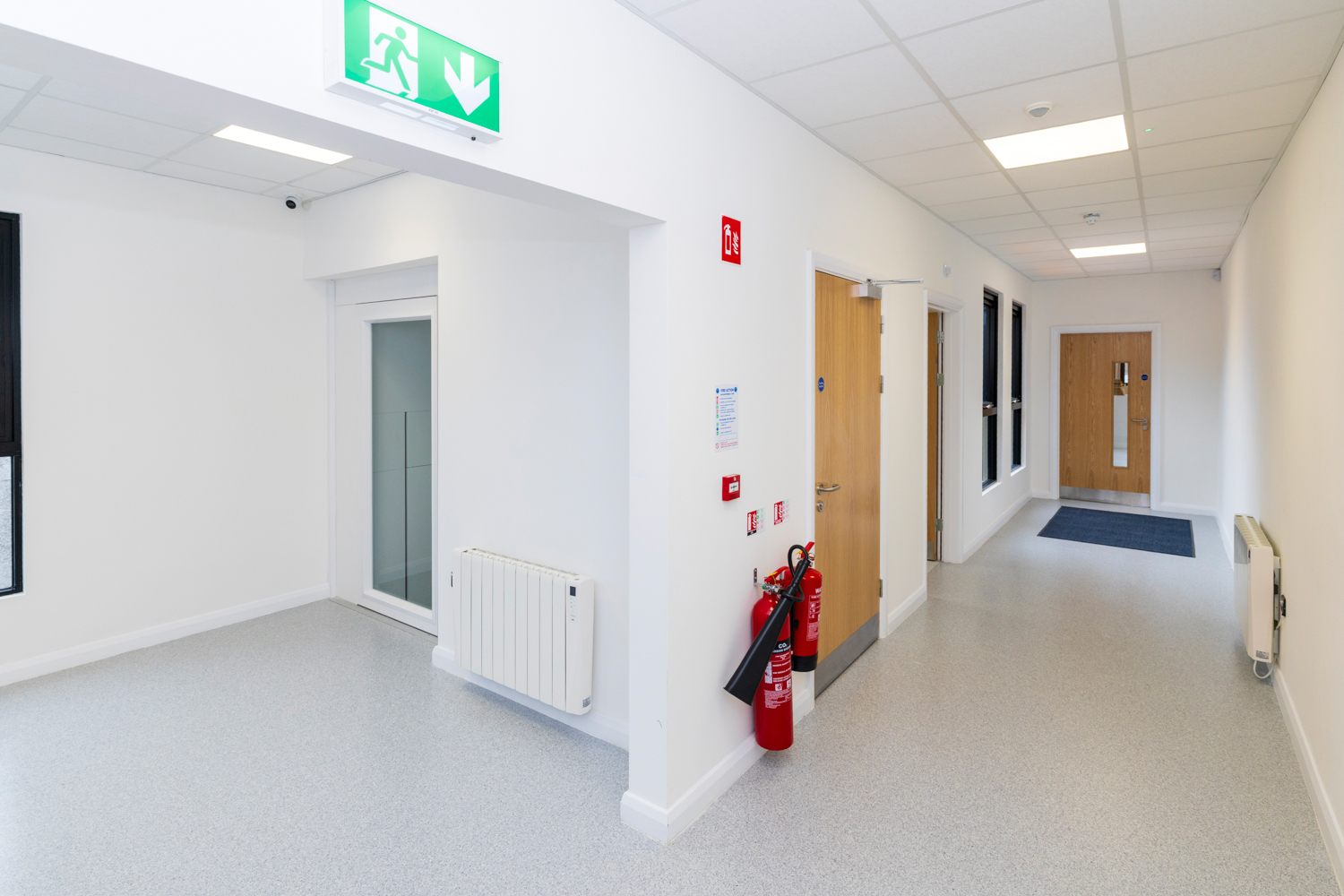

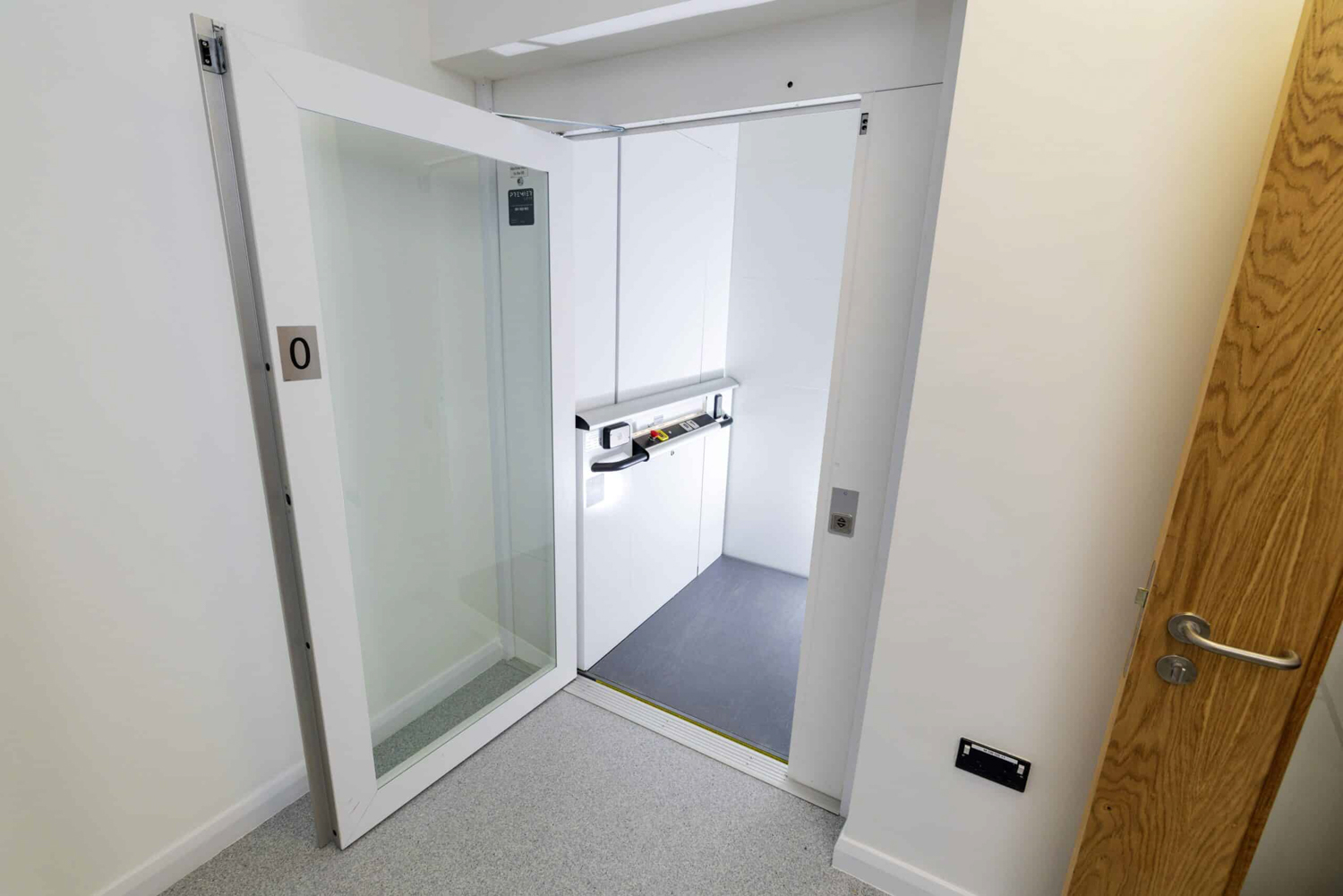

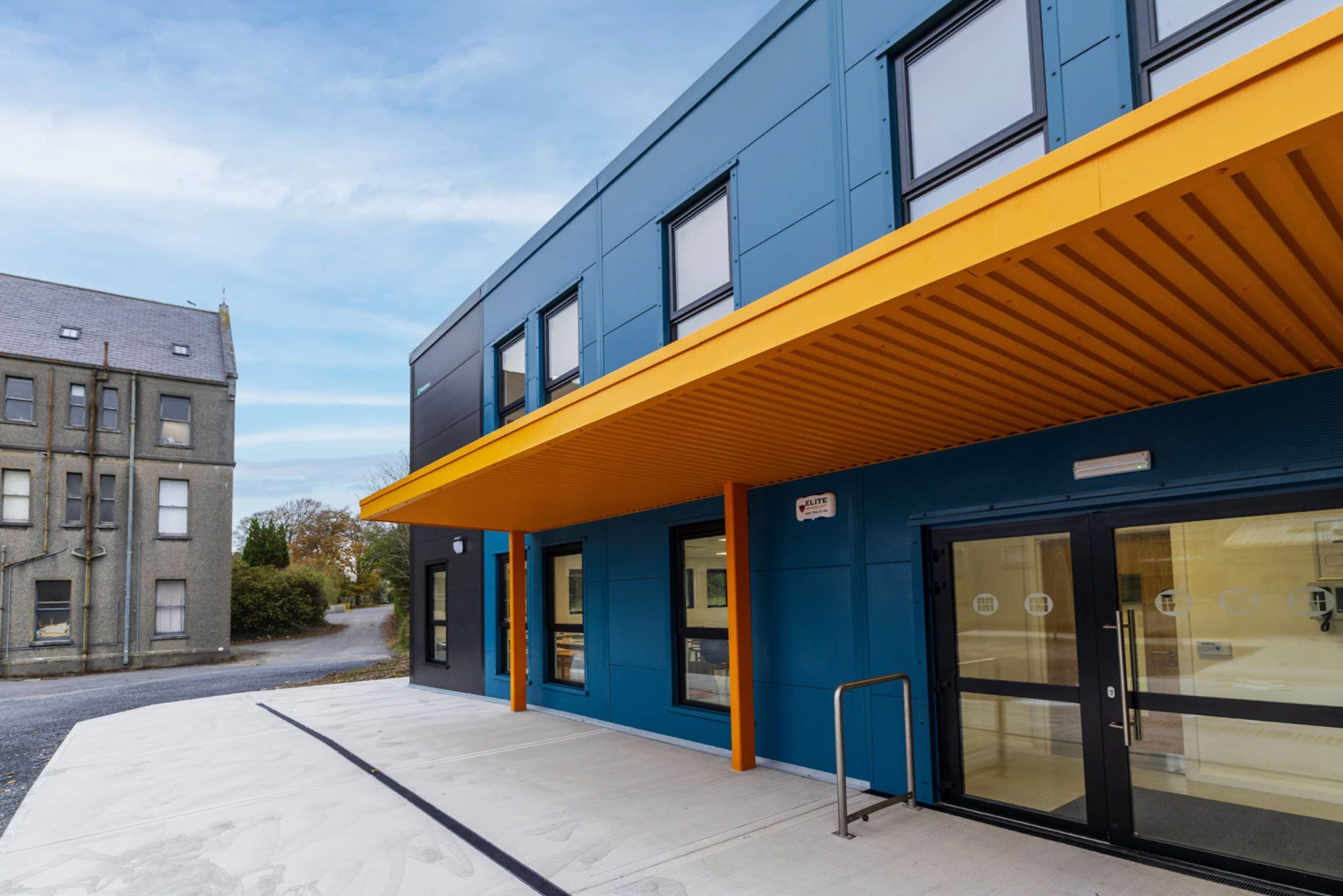

Modern blue building with yellow canopy and glass entrance doors beside an older gray building.Open white vertical public platform lift door in hallway with wooden door to the side.Bright hallway with wooden doors, fire extinguishers, exit sign, gray flooring, and white walls.
For more information about the construction, visit Modulacc's project page.

dublin Road Campus

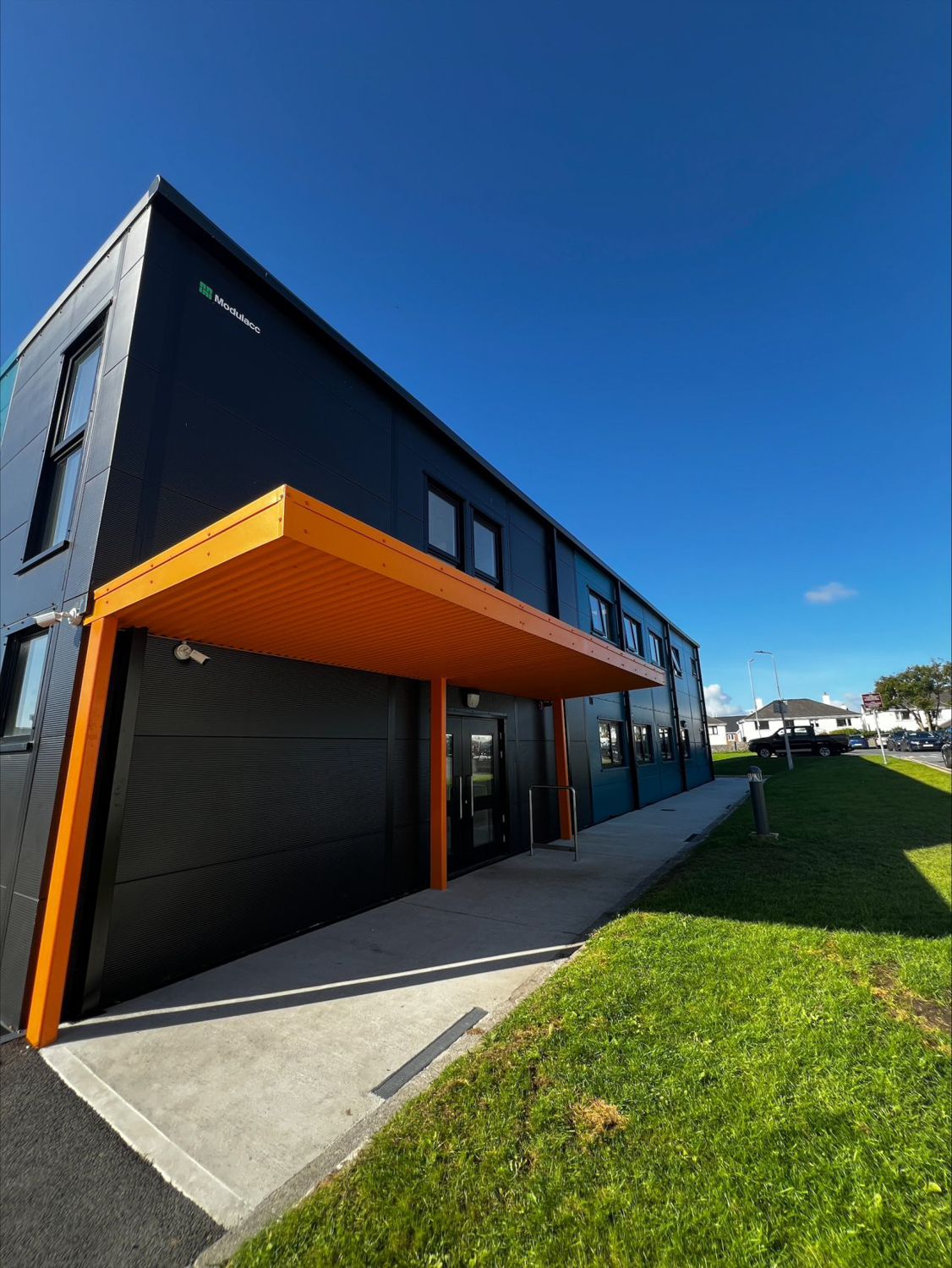

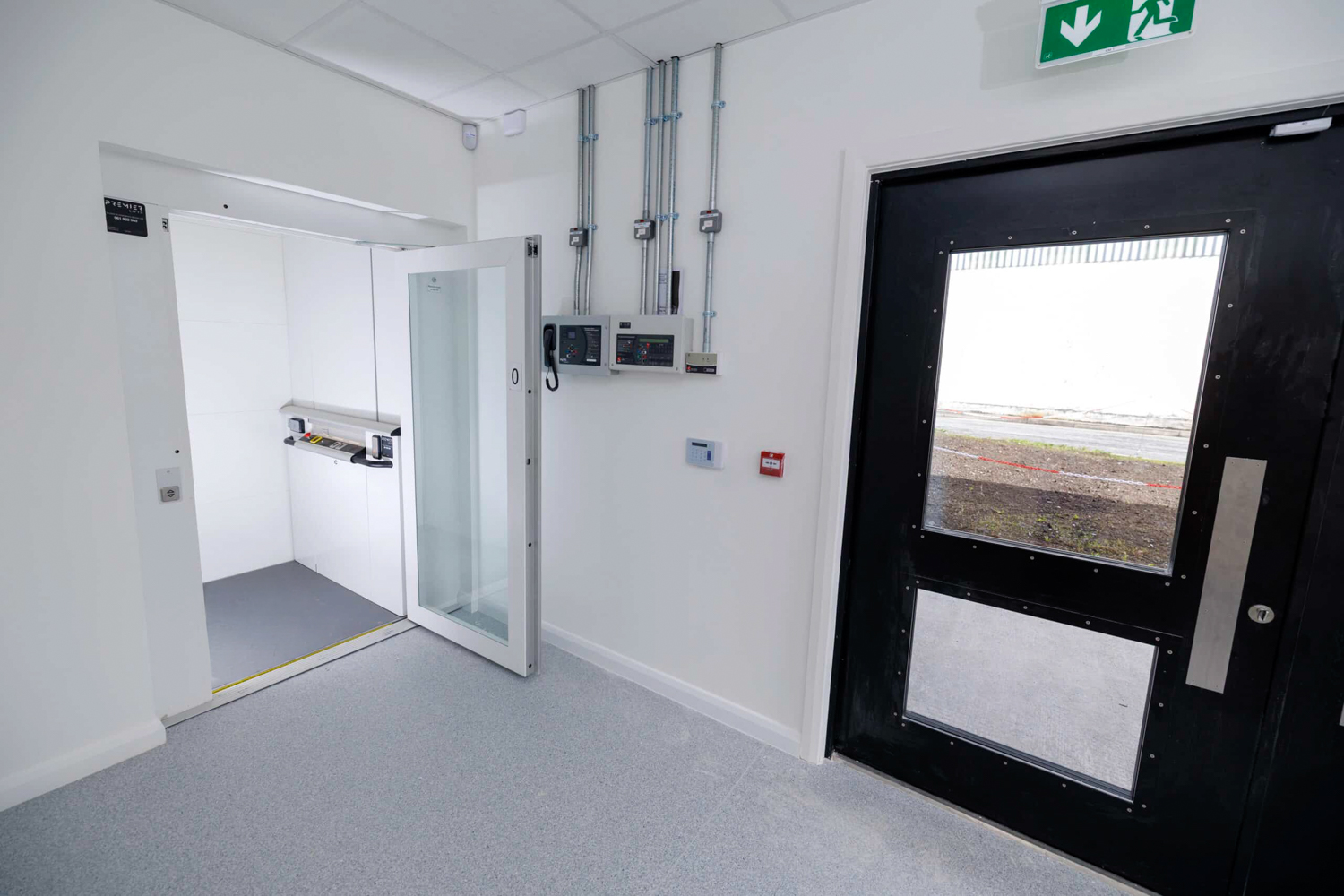

Modern black building with orange canopy over entrance and clear blue sky above.Interior of a public platform lift with an open white glass door, black exit door with window, and wall-mounted control panels.
For more information about the construction, visit Modulacc's project page.
